NEOFLUX PRO-V SINGLE COLOR

Neoflux Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neoflux Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.

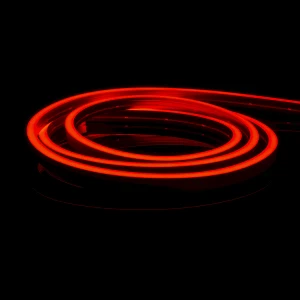

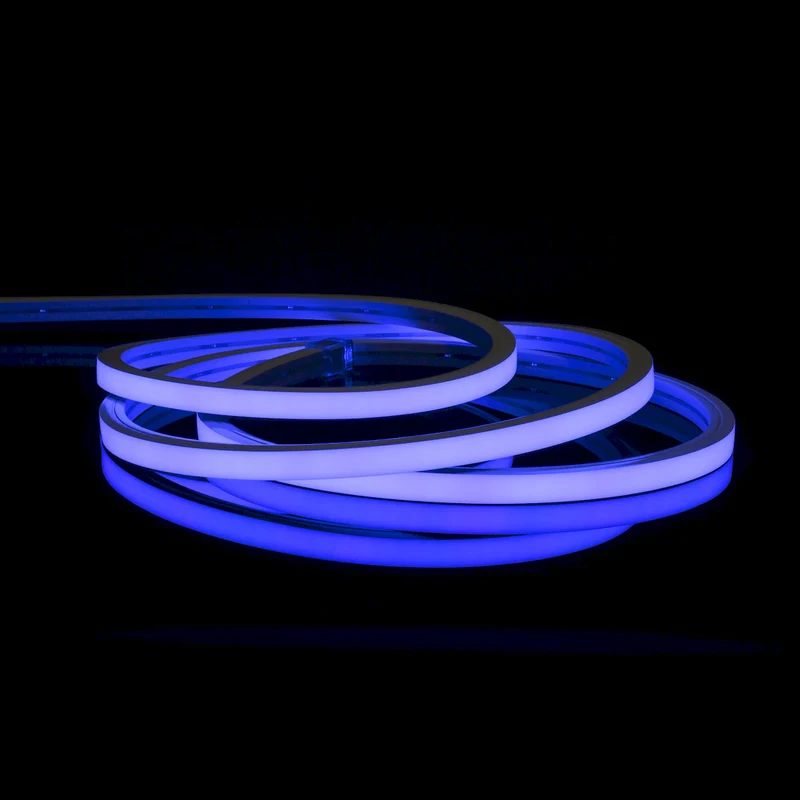

  • Single color (top bend) LED neon
  • Available in Red, Green, and Blue colors
  • Consumes up to 3.05W per foot
  • Cuttable every 1.96” with 55.7ft max run
  • Quick install field connections: Front, Side, and Bottom feeds
  • UV, flame, and saltwater resistant
  • IP67 rating featuring sealed silicone jacketing
  • Dimmable (5-100%) with most TRIAC dimmers and DMX controls
  • cULus Listed for indoor and outdoor wet locations
  • 54,000 hours rated life
Series
NFPROV-SC
Voltage
24V DC
CCT
Red / Green / Blue
CRI
N/A
Wattage
3.05W per ft
Lumens
Up to 149Lm per ft
Max Run
55.7ft
Cut Increments
Every 1.96"
IP Rating
IP67 - Encased
Dimmable
TRIAC / DMX (5-100%)
Rating
cULus Listed
Rated Life
54,000 hrs
PZM-NFPROV-RE-98

Red / 24V DC / 3.05W per ft / 60Lm per ft / 98ft Reel

PZM-NFPROV-GR-98

Green / 24V DC / 3.05W per ft / 149Lm per ft / 98ft Reel

PZM-NFPROV-BL-98

Blue / 24V DC / 3.05W per ft / 30Lm per ft / 98 ft Reel

PZM-NFPROV-RE-CC

Red / 24V DC / 3.05W per ft / 60Lm per ft / Custom Cut

PZM-NFPROV-GR-CC

Green / 24V DC / 3.05W per ft / 149Lm per ft / Custom Cut

PZM-NFPROV-BL-CC

Blue / 24V DC / 3.05W per ft / 30Lm per ft / Custom Cut

PZM-NFPROV-CONKIT-5PIN-FRNTL
36" Pro-V Power Feed - Front Left (2-pin)
PZM-NFPROV-CONKIT-2PIN-FRNTR
36” Pro-L Power Feed - Front Right (2-pin)
PZM-NFPROV-CONKIT-2PIN-BTTML
36” Pro-L Power Feed - Bottom Left (2-pin)
PZM-NFPROV-CONKIT-2PIN-BTTMR
36” Pro-L Power Feed - Bottom Right (2-pin)
PZM-NFPROV-CONKIT-2PIN-SIDL
36” Pro-L Power Feed - Side Left (2-pin)
PZM-NFPROV-CONKIT-2PIN-SIDR
36” Pro-L Power Feed - Side Right (2-pin)
PZM-NFPROV-2JUMP6
6” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-2JUMP12
12” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-2JUMP24
24” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-2JUMP36
36” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-END
Pro-L End Cap
PZM-NFPROV-CHAN-1M
Pro-L 1m Aluminum Mounting Channel
Specification Sheet
Instruction Sheets

NFPROV-SC Instruction Sheets

ORDERING INFORMATION

Part NumberVoltageCCTCRIWattageLumensLengthIP RatingCuttableMax Run
PZM-NFPROV-RE-9824V DCRed90+3.05W/ft60Lm/ft98ftIP67 - Encased1.96"55.7ft
PZM-NFPROV-GR-9824V DCGreen90+3.05W/ft149Lm/ft98ftIP67 - Encased1.96"55.7ft
PZM-NFPROV-BL-9824V DCBlue90+3.05W/ft30Lm/ft98ftIP67 - Encased1.96"55.7ft
PZM-NFPROV-RE-CC24V DCRed90+3.05W/ft63Lm/ftCustom CutIP67 - Encased1.96"55.7ft
PZM-NFPROV-GR-CC24V DCGreen90+3.05W/ft149Lm/ftCustomIP67 - Encased1.96"55.7ft
PZM-NFPROV-BL-CC24V DCBlue90+3.05W/ft30Lm/ftCustom CutIP67 - Encased1.96"55.7ft
