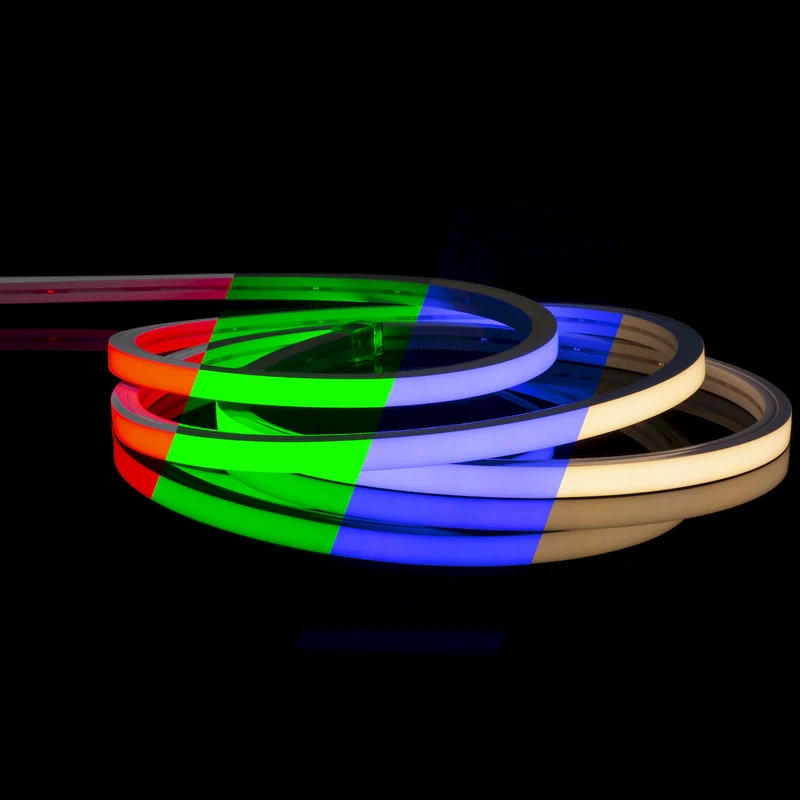

NEOFLUX PRO-V RGBW

Neoflux Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neoflux Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.

  • RGBW vertical (top bend) LED neon
  • Lumen output up to 134Lm per foot
  • Consumes up to 4.57W per foot
  • Cuttable every 2.46” with 16.4ft max run
  • Quick install field connections: Front, Side, and Bottom feeds
  • UV, flame, and saltwater resistant
  • IP67 rating featuring sealed silicone jacketing
  • Dimmable (5-100%) with most DMX controls
  • cULus Listed for indoor and outdoor wet locations
  • 54,000 hours rated life
Series
NFPROV-RGBW
Voltage
24V
CCT
RGBW
CRI
N/A
Wattage
4.57W per ft
Lumens
Up to 134Lm per ft
Max Run
16.4ft
Cut Increments
Every 2.46"
IP Rating
IP67 - Encased
Dimmable
DMX (5-100%)
Rating
cETLus Listed
Rated Life
54,000 hrs
PZM-NFPROV-RGBW-98

RGBW / 24V / 4.57W per ft / 134Lm per ft / 98ft Reel

PZM-NFPROV-RGBW-CC

RGBW / 24V / 4.57W per ft / 134Lm per ft / Custom Cut

PZM-NFPROV-CONKIT-5PIN-FRNTL
36" Pro-V Power Feed - Front Left (2-pin)
PZM-NFPROV-CONKIT-5PIN-FRNTR
36" Pro-V Power Feed - Front Right (5-pin)
PZM-NFPROV-CONKIT-5PIN-BTTML
36" Pro-V Power Feed - Bottom Left (5-pin)
PZM-NFPROV-CONKIT-5PIN-BTTMR
36" Pro-V Power Feed - Bottom Right (5-pin)
PZM-NFPROV-CONKIT-5PIN-SIDL
36" Pro-V Power Feed - Side Left (5-pin)
PZM-NFPROV-CONKIT-5PIN-SIDR
36" Pro-V Power Feed - Side Right (5-pin)
PZM-NFPROV-5JUMP6
6" Pro-V Linking Cable - Front Feed (5-pin)
PZM-NFPROV-5JUMP12
12" Pro-V Linking Cable - Front Feed (5-pin)
PZM-NFPROV-5JUMP24
24" Pro-V Linking Cable - Front Feed (5-pin)
PZM-NFPROV-5JUMP36
36" Pro-V Linking Cable - Front Feed (5-pin)
PZM-NFPROV-END
Pro-L End Cap
PZM-NFPROV-CHAN-1M
Pro-L 1m Aluminum Mounting Channel
Specification Sheet
Instruction Sheets

NFPROV-RGBW Series Instruction Sheets

ORDERING INFORMATION

Part NumberVoltageCCTCRIWattageLumensLengthIP RatingCuttableMax Run
PZM-NFPROV-RGBW-9824V DCRGBWN/A4.57W/ft134Lm/ft98ftIP67 - Encased2.46"16.4ft
PZM-NFPROV-RGBW-CC24V DCRGBWN/A4.57W/ft134Lm/ftCustom CutIP67 - Encased2.46"16.4ft
