NEOFLUX 360 STATIC WHITE

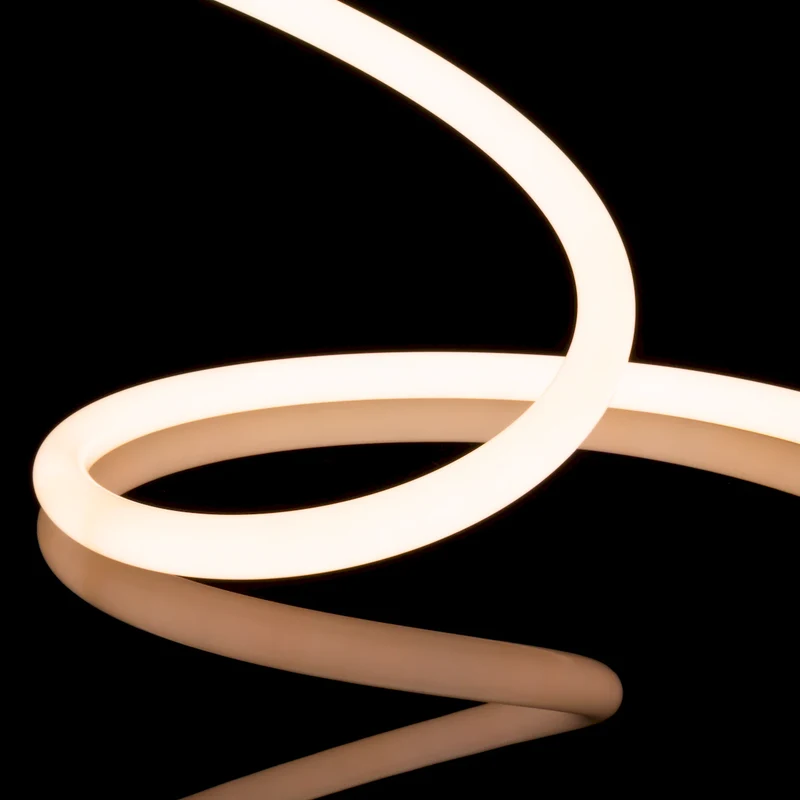

NeoFlux 360 mimics traditional neon featuring uniform 360° illumination that eliminates nearly all shadowing. Featuring a universal bend orientation design, configure NeoFlux 360 to accommodate any direct view application by surface mounting or suspending to create a dynamic and intriguing neon display.

  • 360° illumination with universal bending orientation
  • 24V DC low voltage input
  • Colors temperatures available: 2700K / 3000K / 4000K
  • Easily bend to any shape with superior flexibility
  • UV, flame, and saltwater resistant featuring IP65 rating
  • Cuttable every 1.31" with maximum run lengths up to 16.4ft
  • Transparent surface mounting clips and jointers available
  • 50,000 hours rated life
Series
PZM-NF360-SW
Voltage
24V DC
CCT
2700K / 3000K / 4000K
CRI
80+
Wattage
3.35W per ft
Lumens
Up to 220Lm per ft
Max Run
16.4ft
Cut Increments
Every 1.31"
IP Rating
IP65 - Wet Location
Dimmable
TRIAC (10-100%)
Rating
cULus Listed
Rated Life
50,000 hrs
PZM-NF360-27-16

2700K / 24V DC / 3.35W per ft / 203Lm per ft / 16.4 ft Reel

PZM-NF360-30-16

3000K / 24V DC / 3.35W per ft / 215Lm per ft / 16.4 ft Reel

PZM-NF360-40-16

4000K / 24V DC / 3.35W per ft / 220Lm per ft / 16.4 ft Reel

PZM-NF360-CLIPS

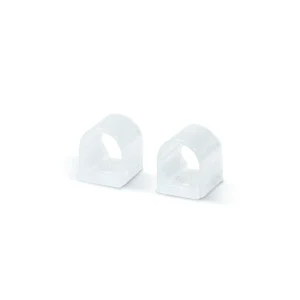

Mounting Clips (Qty 5)
PZM-NF360-JOIN

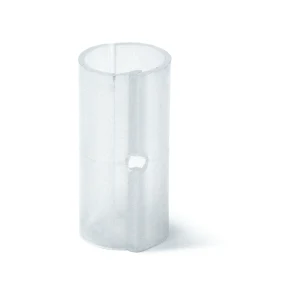

Clear Plastic Joiner
PZM-NF360-END

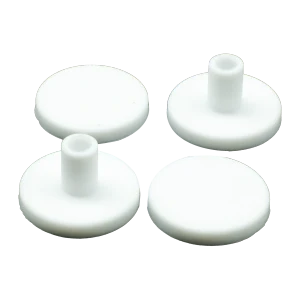

End Cap

ORDERING INFORMATION

Part NumberVoltageCCTCRIWattageLumensLengthIP RatingCuttableMax Run
PZM-NF360-27-1624V DC2700K80+3.35W/ft203Lm/ft16.4ftIP65 - Wet1.31"16.4ft
PZM-NF360-30-1624V DC3000K80+3.35W/ft203Lm/ft16.4ftIP65 - Wet1.31"16.4ft
PZM-NF360-40-1624V DC4000K80+3.35W/ft203Lm/ft16.4ftIP65 - Wet1.31"16.4ft
