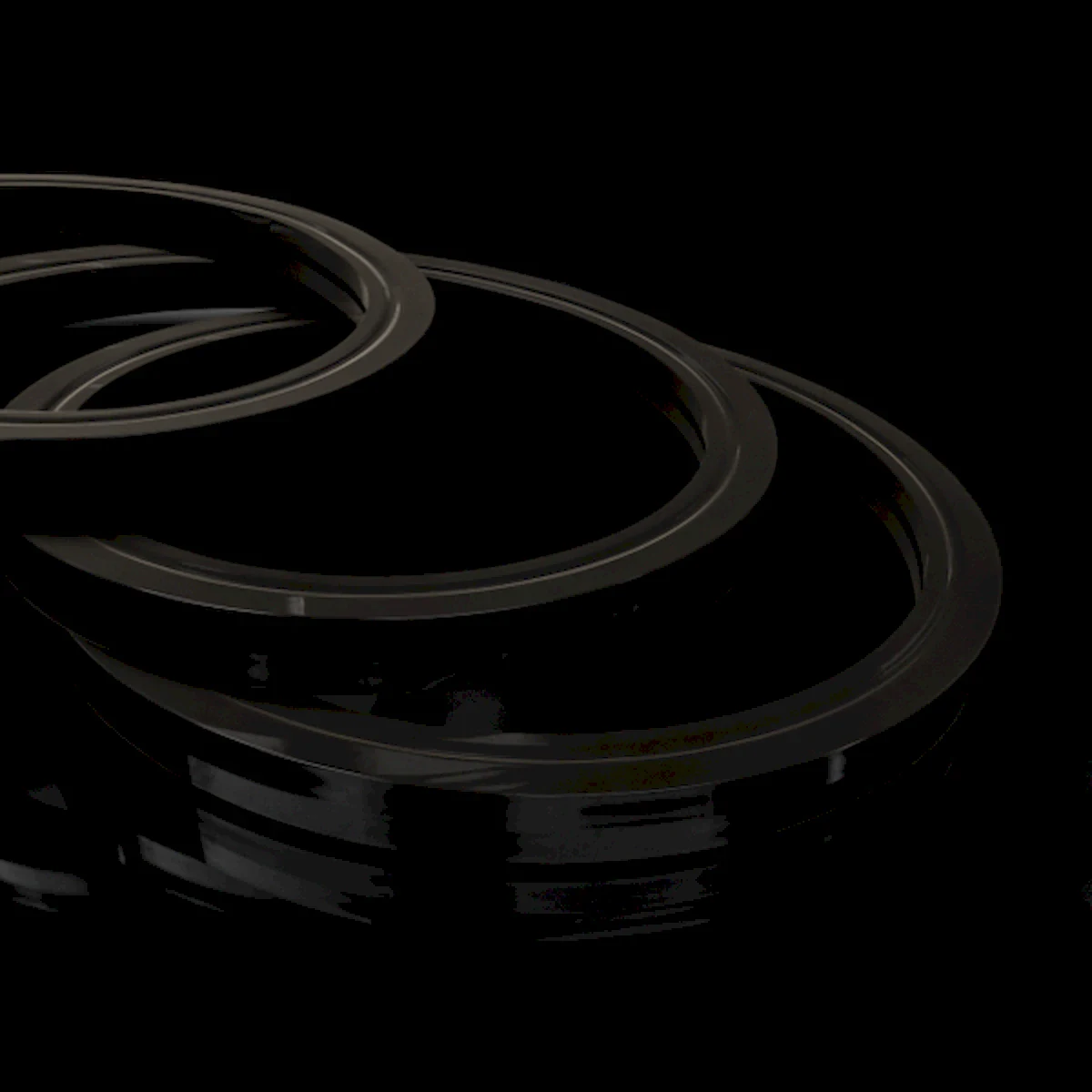

NEOFLUX PRO-V ONYX STATIC WHITE
NeoFlux Pro Onyx is the newest evolution in direct view lighting for seamless illumination of darkened architectural design. NeoFlux Pro Onyx is as durable as it is decorative, with UV, flame, and saltwater resistance. Sleek in profile and simple to install, NeoFlux Pro Onyx offers versitile illumination for many interior or exterior applications.
- Static white vertical (top bend) LED neon with black jacket
- Available in 2100K, 2700K, 3000K, 3500K, 4000K, and 5000K
- 90+ color rendering index
- Lumen output performance up to 49Lm per foot
- Custom cut program cuttable every 1.97” with 16.4ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most ELV and TRIAC dimmers
- cULus Listed for indoor and outdoor wet locations
- 30,000 hours rated life
Series
NFPROV-ONYX
Voltage
24V DC
CCT
2100K / 2700K / 3000K / 3500K / 4000K / 5000K
Wattage
3.05W/ft
Lumens
Up to 49Lm/ft
Max Run
16.4ft
Cut Increments
Every 1.97"
IP Rating
IP67 - Jacketed
Dimmable
(5-100%) with most ELV and TRIAC dimmers
Rating
cULus Listed - Wet Location
Rated Life
30,000 hours
PZM-NFPROL-ONYX-CHAN-1M
1m Black Channel 17.3mm W x 21.1mm H
PZM-ADPT-DRJ-30-24
PZM-ADPT-DRJ-60-24
PZM-ADPT-DRJ-96-24
PZM-ADPT-DRJ-192-24
PZM-ADPT-DRJ-288-24
