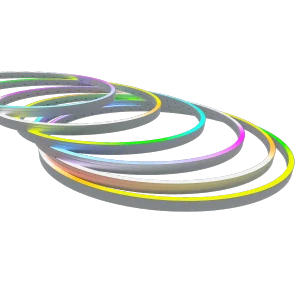

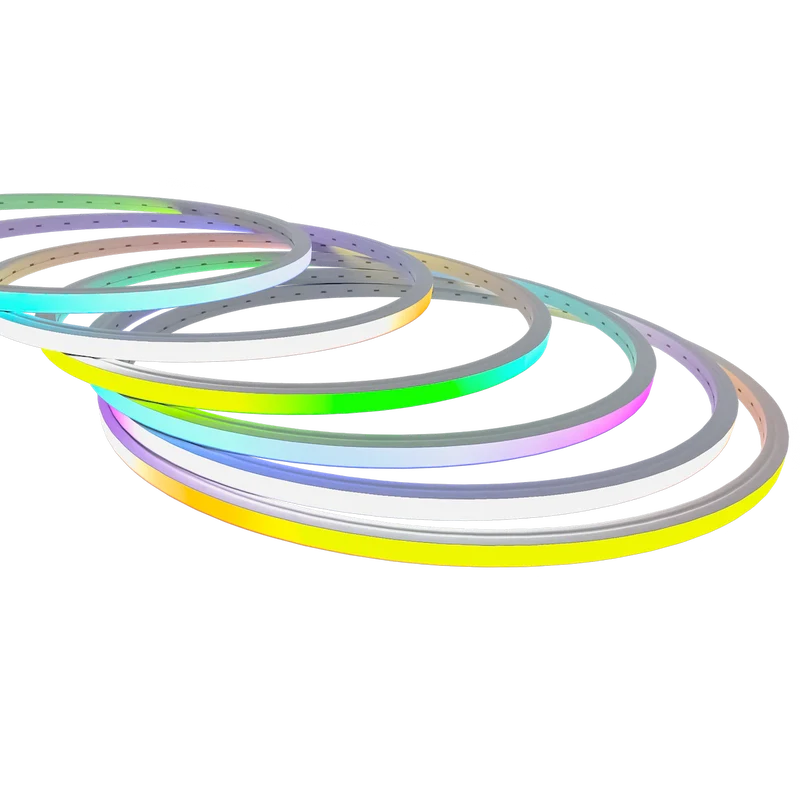

NEOFLUX PRO-V DYNAMIC RGBW
NeoFlux Pro is the newest evolution in direct view lighting for seamless illumination of darkened architectural design. Cuttable every 4.92”, each segment is addressable with DMX 512 protocol, enabling independent control of dynamic color and design. Sleek in profile and simple to install, NeoFlux Pro offers pixel level control for endless interior or exterior applications, including effects such as chasing, popcorning, waves, and strobe.
- Dynamic RGBW vertical (side bend) LED neon with white jacket
- Lumen output performance up to 134Lm per foot
- Consumes up to 4.23W per foot
- Available as custom order - cut every 4.92" with 16.4ft max run
- UV, flame, and saltwater resistant
- Sealed white silicone jacketing featuring IP67 rating
- Dimmable (5-100%) with most DMX or SPI controls
- cULus Listed for indoor and outdoor wet locations
- 30,000 hours rated life
Series
NFPROV
Voltage
24V DC
Color
Digital Pixel RGBW
Wattage
4.26W / ft (14W/m)
Lumens
134Lm/ft
Max Run
16.4ft
Cut Increments
4.92" (125 mm) - Custom Orders Only
IP Rating
IP 67 - Jacketed
Protocol
DMX IC SM16512 / SPI UCS2904B
Resolution
4.92” (125mm) pixel resolution
Dimmable
0-100%
Rating
cULus Listed - Wet Location
Rated Life
30,000 Hours
PZM-NFPROV-CHAN-1M
Pro-V 1m Aluminum Mounting Channel

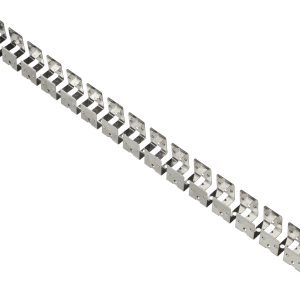

PZM-NFPROV-FLEXCHAN-2M
Pro-V Flexible 2m Aluminum Mounting Channel
(Special Order - Please Allow up to 2-4 Weeks Order Processing and Delivery)
PZM-ADPT-DRJ-30-24
PZM-ADPT-DRJ-60-24
PZM-ADPT-DRJ-96-24
PZM-ADPT-DRJ-192-24
PZM-ADPT-DRJ-288-24
