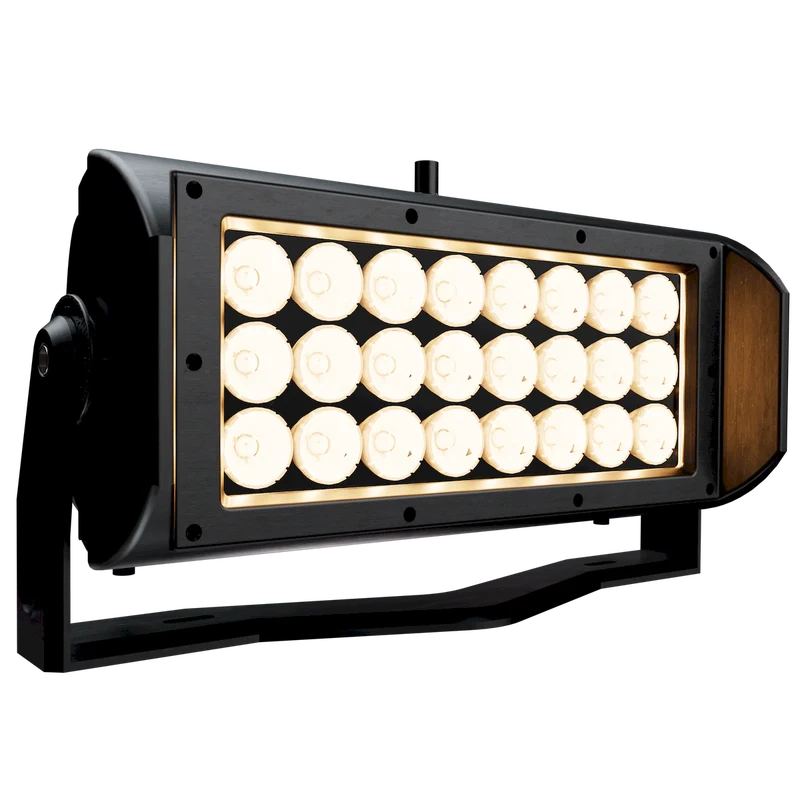

SĒNIK REFLEKT STATIC WHITE
The Sēnik Reflekt takes a modern, modular approach to facade lighting. Featuring individually specifiable fixture heads each featuring -90° to 90° adjustability, output over 15,000 lumens, and modular mounting options (1, 2, or 3 head fixtures). Available in multiple color temperature options with additional accessories to modify performance, the Sēnik Reflekt offers the ultimate flexibility and efficiency in facade lighting.
- 3000K or 4000K (additional CCT’s available special order)
- Greater than 45,000 lumen output when using three heads
- -90° to 90° modular and global rotation with locking yokes
- Black finish (gray, white, & custom RAL available special order)
- 0-10V dimming or On/Off operation
- cETLus Listed, IP67 (wet location)
- Die-cast aluminum housing & accessory frames
- IK10 impact rating with optional rock guard or louver accessory
- Field interchangeable optical lens accessory available in 25°, 35°, 50°, 65°, 35°x15°, 60°x15°, or wall wash distribution
- Optimized, state-of-the-art heat sink design enables a long life, far exceeding L70>60,000 hours rated life
- Powered by Cree LED™ XLamp® LEDs
Series
RFLKT
Voltage
100-277V AC, 50/60Hz
CCT
3000K | 4000K | Custom Options Available
Wattage
100W per fixture
Lumens
Up to 15,044Lm per fixture
Max Run
9 Units (100V AC) / 18 Units (277V AC)
Dimmable
0-100%
IP Rating
IP67 (Outdoor, Wet Locations)
IK Rating
IK10 (when using rock guard or louver accessory)
Rating
cETLus Listed
Rated Life
L70 > 60,000 Hours
PZM-RFLKT-UNV-010V-30K-12-BK
Single Head / Black Finish / 100-277V AC Input / 3000K / 7,700Lm / 100W / 0-10V / 12° Native
PZM-RFLKT-UNV-010V-40K-12-BK
Single Head / Black Finish / 100-277V AC Input / 4000K / 7,700Lm / 100W / 0-10V / 12° Native
PZM-SNK-PSL-010V-50FT
50’ Power + Signal leader cable, Black
PZM-SNK-6JUMP10-BK
10’ Power + Signal linking cable, Black
PZM-SNK-6JUMP1-BK
1’ Power + Signal linking cable, Black
PZM-RFLKT-OPL-25-BK
Optical Beam Accessory 25 degree, Black Finish
PZM-RFLKT-OPL-35-BK
Optical Beam Accessory 35 degree, Black Finish
PZM-RFLKT-OPL-50-BK
Optical Beam Accessory 50 degree, Black Finish
PZM-RFLKT-OPL-65-BK
Optical Beam Accessory 65 degree, Black Finish
PZM-RFLKT-OPL-3515-BK
Optical Beam Accessory 35X15 degree, Black Finish
PZM-RFLKT-OPL-6015-BK
Optical Beam Accessory 60X15 degree, Black Finish
PZM-RFLKT-OPL-17WW-BK
Optical Beam Accessory wall wash 17 degree, Black Finish
PZM-RFLKT-VSR-BK
Half Glareshield / Visor (40deg cutoff), Black Finish
PZM-RFLKT-LVR-BK
Baffled louver with IK10 rating, Black finish
PZM-RFLKT-WR
Wire Rock Guard with IK10 rating
PZM-RFLKT-BKT1-BK
Mounting Bracket Single, Black Finish
PZM-RFLKT-BKT2-BK
Mounting Bracket Dual, Black Finish
PZM-RFLKT-BKT3-BK
Mounting Bracket Triple, Black Finish
PZM-SNK-SIGEND-6PIN-010V
Termination Endcap
