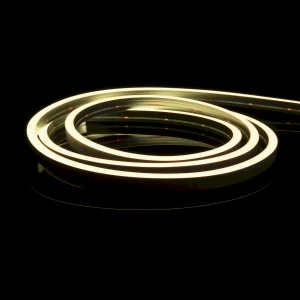

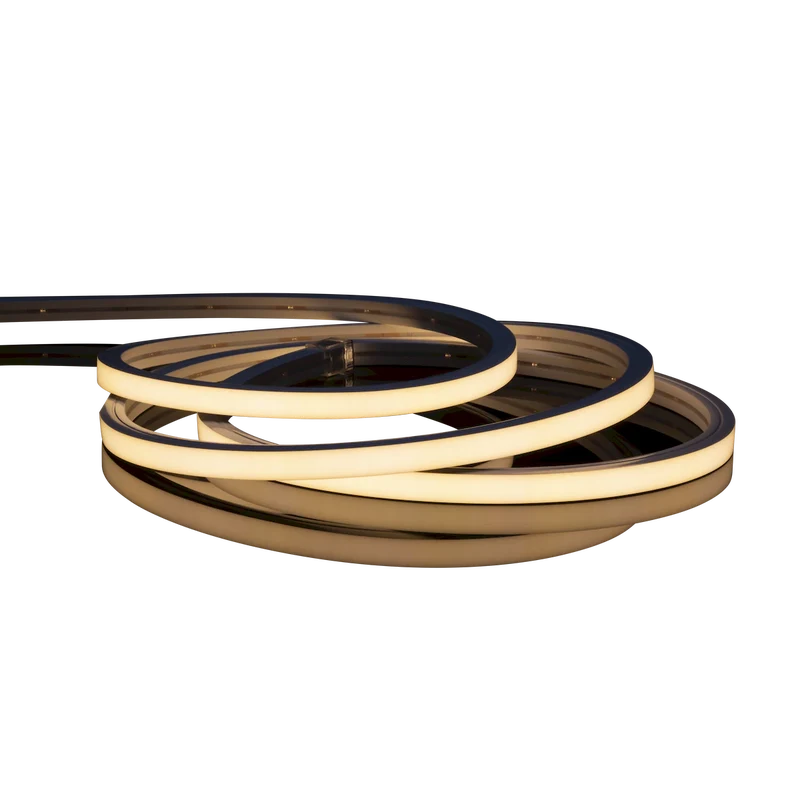

NEOFLUX PRO-V STATIC WHITE
Neoflux Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neoflux Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- Static white vertical (top bend) LED neon
- Color temperature available in: 2700K / 3000K / 4000K
- Lumen output up to 167Lm per foot
- Consumes up to 3.05W per foot
- Cuttable every 1.97” with 55.7ft max run
- Quick install field connections: Front, Side, and Bottom feeds
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most TRIAC and DMX controls
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
Series
NFPROV-SW
Voltage
24V DC
CCT
2700K / 3000K / 4000K
CRI
90+
Wattage
3.05W per ft
Lumens
Up to 167Lm per ft
Max Run
55.7ft
Cut Increments
Every 1.97"
IP Rating
IP67 - Encased
Dimmable
TRIAC / DMX (5-100%)
Rating
cULus Listed
Rated Life
54,000 hrs
PZM-NFPROV-CONKIT-5PIN-FRNTL
36" Pro-V Power Feed - Front Left (2-pin)
PZM-NFPROV-CONKIT-2PIN-FRNTR
36” Pro-L Power Feed - Front Right (2-pin)
PZM-NFPROV-CONKIT-2PIN-BTTML
36” Pro-L Power Feed - Bottom Left (2-pin)
PZM-NFPROV-CONKIT-2PIN-BTTMR
36” Pro-L Power Feed - Bottom Right (2-pin)
PZM-NFPROV-CONKIT-2PIN-SIDL
36” Pro-L Power Feed - Side Left (2-pin)
PZM-NFPROV-CONKIT-2PIN-SIDR
36” Pro-L Power Feed - Side Right (2-pin)
PZM-NFPROV-2JUMP6
6” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-2JUMP12
12” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-2JUMP24
24” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-2JUMP36
36” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROV-END
Pro-L End Cap
PZM-NFPROV-FLEXCHAN-2M
Pro-V Flexible 2m Aluminum Mounting Channel
(Special Order - Please Allow up to 2-4 Weeks Order Processing and Delivery)
Specification Sheets
Instruction Sheets
IES Files
ORDERING INFORMATION
| Part Number | Voltage | CCT | CRI | Wattage | Lumens | Length | IP Rating | Cuttable | Max Run |
|---|---|---|---|---|---|---|---|---|---|
| PZM-NFPROV-27-98 | 24V DC | 2700K | 90+ | 3.05W/ft | 161Lm/ft | 98ft | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROV-30-98 | 24V DC | 3000K | 90+ | 3.05W/ft | 161Lm/ft | 98ft | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROV-40-98 | 24V DC | 4000K | 90+ | 3.05W/ft | 167Lm/ft | 98ft | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROV-27-CC | 24V DC | 2700K | 90+ | 3.05W/ft | 161Lm/ft | Custom Cut | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROV-30-CC | 24V DC | 3000K | 90+ | 3.05W/ft | 158Lm/ft | Custom Cut | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROV-40-CC | 24V DC | 4000K | 90+ | 3.05W/ft | 167Lm/ft | Custom Cut | IP67 - Encased | 1.97" | 55.7ft |
