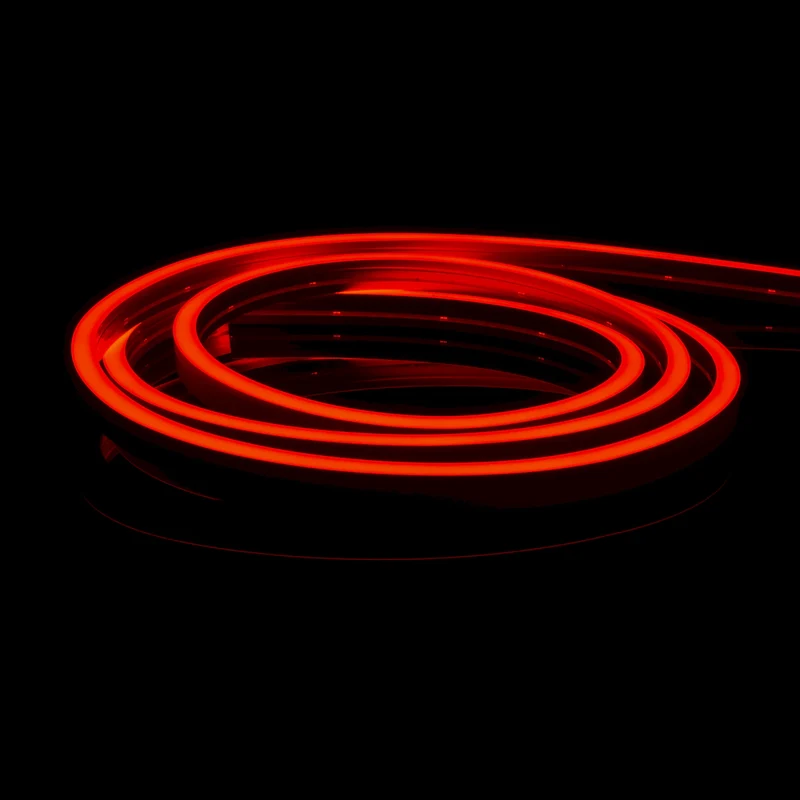

NEOFLUX PRO-L SINGLE COLOR
Neoflux Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neoflux Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- Single color lateral (side bend) LED neon
- Colors available in: Red / Green / Blue
- Lumen output up to 103Lm per foot
- Consumes up to 3.05W per foot
- Cuttable every 1.97” with 55.7ft max run
- Quick install field connections: Front, Side, and Bottom feeds
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most DMX controls
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
Series
NFPROL-SC
Voltage
24V DC
CCT
Red / Green / Blue
CRI
N/A
Wattage
3.05W per ft
Lumens
Up to 103Lm per ft
Max Run
55.7ft
Cut Increments
Every 1.97"
IP Rating
IP67 - Encased
Dimmable
TRIAC / DMX (5-100%)
Rating
cULus Listed
Rated Life
54,000 hrs
PZM-NFPROL-RE-98
Red / 24V DC / 3.05W per ft / 41Lm per ft / 98ft Reel
PZM-NFPROL-GR-98
Green / 24V DC / 3.05W per ft / 106Lm per ft / 98ft Reel
PZM-NFPROL-BL-98
Blue / 24V DC / 3.05W per ft / 21Lm per ft / 98 ft Reel
PZM-NFPROL-RE-CC
Red / 24V DC / 3.05W per ft / 41Lm per ft / Custom Cut
PZM-NFPROL-GR-CC
Green / 24V DC / 3.05W per ft / 106Lm per ft / Custom Cut
PZM-NFPROL-BL-CC
Blue / 24V DC / 3.05W per ft / 21Lm per ft / Custom Cut
PZM-NFPROL-CONKIT-2PIN-FRNTL
36” Pro-L Power Feed - Front Left (2-pin)
PZM-NFPROL-CONKIT-2PIN-FRNTR
36” Pro-L Power Feed - Front Right (2-pin)
PZM-NFPROL-CONKIT-2PIN-BTTML
36” Pro-L Power Feed - Bottom Left (2-pin)
PZM-NFPROL-CONKIT-2PIN-BTTMR
36” Pro-L Power Feed - Bottom Right (2-pin)
PZM-NFPROL-CONKIT-2PIN-SIDL
36” Pro-L Power Feed - Side Left (2-pin)
PZM-NFPROL-CONKIT-2PIN-SIDR
36” Pro-L Power Feed - Side Right (2-pin)
PZM-NFPROL-2JUMP6
6” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROL-2JUMP12
12” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROL-2JUMP24
24” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROL-2JUMP36
36” Pro-L Linking Cable - Front Feed (2-pin)
PZM-NFPROL-END
Pro-L End Cap
PZM-NFPROL-CHAN-1M
Pro-L 1m Aluminum Mounting Channel
Specification Sheets
Instruction Sheets
IES Files
ORDERING INFORMATION
| Part Number | Voltage | CCT | CRI | Wattage | Lumens | Length | IP Rating | Cuttable | Max Run |
|---|---|---|---|---|---|---|---|---|---|
| PZM-NFPROL-RE-98 | 24V DC | Red | 90+ | 3.05W/ft | 41Lm/ft | 98ft | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROL-GR-98 | 24V DC | Green | 90+ | 3.05W/ft | 106Lm/ft | 98ft | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROL-BL-98 | 24V DC | Blue | 90+ | 3.05W/ft | 21Lm/ft | 98ft | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROL-RE-CC | 24V DC | Red | 90+ | 3.05W/ft | 41Lm/ft | Custom Cut | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROL-GR-CC | 24V DC | Green | 90+ | 3.05W/ft | 106Lm/ft | Custom Cut | IP67 - Encased | 1.97" | 55.7ft |
| PZM-NFPROL-BL-CC | 24V DC | Blue | 90+ | 3.05W/ft | 21Lm/ft | Custom Cut | IP67 - Encased | 1.97" | 55.7ft |
