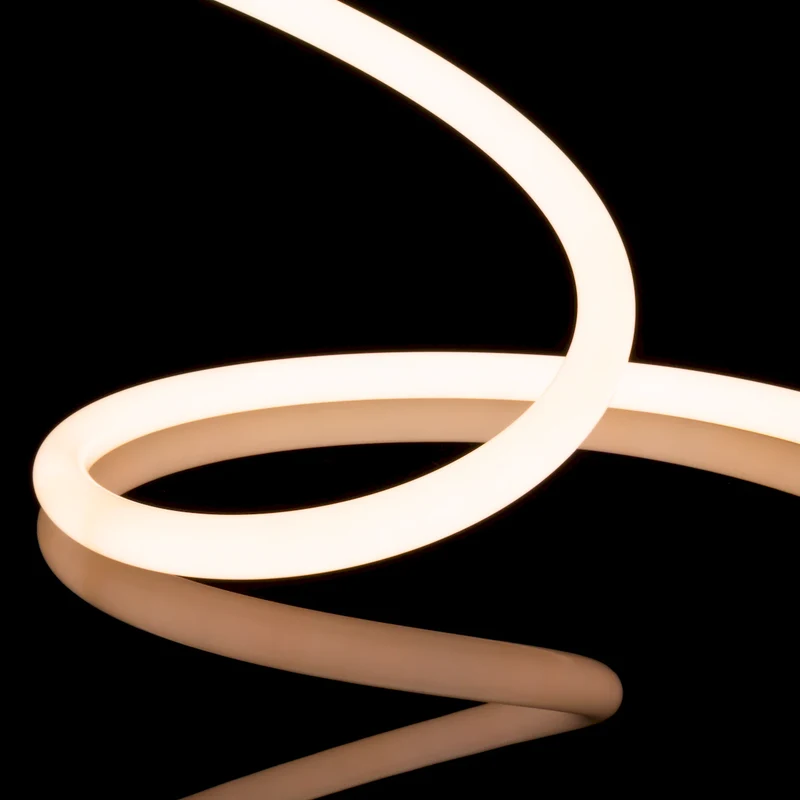

NEOFLUX 360 STATIC WHITE
NeoFlux 360 mimics traditional neon featuring uniform 360° illumination that eliminates nearly all shadowing. Featuring a universal bend orientation design, configure NeoFlux 360 to accommodate any direct view application by surface mounting or suspending to create a dynamic and intriguing neon display.
- 360° illumination with universal bending orientation
- 24V DC low voltage input
- Colors temperatures available: 2700K / 3000K / 4000K
- Easily bend to any shape with superior flexibility
- UV, flame, and saltwater resistant featuring IP65 rating
- Cuttable every 1.31" with maximum run lengths up to 16.4ft
- Transparent surface mounting clips and jointers available
- 50,000 hours rated life
Series
PZM-NF360-SW
Voltage
24V DC
CCT
2700K / 3000K / 4000K
CRI
80+
Wattage
3.35W per ft
Lumens
Up to 220Lm per ft
Max Run
16.4ft
Cut Increments
Every 1.31"
IP Rating
IP65 - Wet Location
Dimmable
TRIAC (10-100%)
Rating
cULus Listed
Rated Life
50,000 hrs
PZM-NF360-27-16
2700K / 24V DC / 3.35W per ft / 203Lm per ft / 16.4 ft Reel
PZM-NF360-30-16
3000K / 24V DC / 3.35W per ft / 215Lm per ft / 16.4 ft Reel
PZM-NF360-40-16
4000K / 24V DC / 3.35W per ft / 220Lm per ft / 16.4 ft Reel

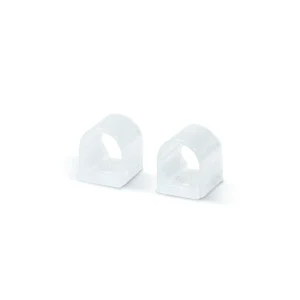

PZM-NF360-CLIPS
Mounting Clips (Qty 5)

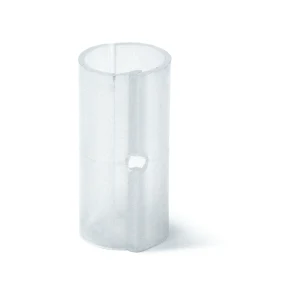

PZM-NF360-JOIN
Clear Plastic Joiner

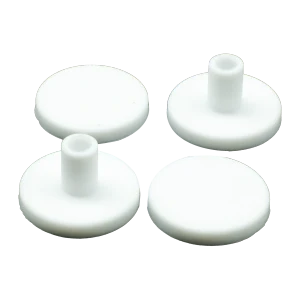

PZM-NF360-END
End Cap
Specification Sheets
Instruction Manual
IES Files
ORDERING INFORMATION
| Part Number | Voltage | CCT | CRI | Wattage | Lumens | Length | IP Rating | Cuttable | Max Run |
|---|---|---|---|---|---|---|---|---|---|
| PZM-NF360-27-16 | 24V DC | 2700K | 80+ | 3.04W/ft | 203Lm/ft | 16.4ft | IP65 - Wet | 1.31" | 16.4ft |
| PZM-NF360-30-16 | 24V DC | 3000K | 80+ | 3.04W/ft | 203Lm/ft | 16.4ft | IP65 - Wet | 1.31" | 16.4ft |
| PZM-NF360-40-16 | 24V DC | 4000K | 80+ | 3.04W/ft | 203Lm/ft | 16.4ft | IP65 - Wet | 1.31" | 16.4ft |
